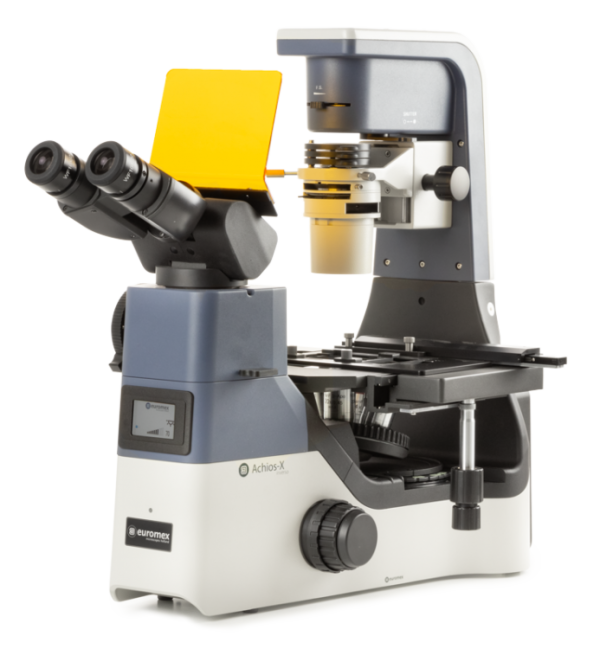

Achios-X Inverso fluorescence

Fluorescence

State-of-the-art microscopes for advanced Life Science applications

Experience optimal comfort and cutting-edge performance with the Achios-X Inverso, an ergonomic masterpiece featuring a state-of-the-art optical system

Tailored to meet the demands of advanced Life Science applications such as life cell imaging and tissue cultures. This microscope stands as an unparalleled choice

Highlights

• Extra Wide field WF 10x/22 mm, Ø 30 mm
• Models with ergo tilting 5º – 35º tubes
• Models with backwards tilting illumination column
• Revolving quintuple nosepiece
• Plan Semi-Apo Fluarex objectives
• Low positioned stage adjustment knobs
• 3 W NeoLED
• LCD screen for Smart Light Control
• Blue, green and UV LED fluorescence

Specifications

EYEPIECES
SWF 10x/22 mm wide field eyepieces with adjustable diopter. ø 30 mm tubes

HEAD
Binocular head with 45° inclined tubes or binocular ergo head with 5-35° tilting tubes. Interpupillary distance of 48 to 75 mm. Optional side photo port with 100-0/0-100 beamsplitter

NOSEPIECE
Revolving quintuple nosepiece on ball-bearings

OBJECTIVES – 60 MM PARFOCAL, M25 THREAD

Objectives with 1.2 mm coverslip correction

Objectives with adjustable coverslip correction

Fluarex™ objectives are made of low-absorption glass Fluarex™ is a trademark of Euromex microscopen bv. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

STAGE

• 170 x 250 mm stage with 129 x 83 mm mechanical X-Y stage
• Supplied with metal insert for Ø 65 glass plate and universal cell culture dish holder (AI.9569)
• Optional metal inserts, Ø 35, Ø 54 and Ø 90 mm cell culture dish holder with 27×26 mm slide holder
• Optional metal insert for Multiwell plates (127.76  x 85.48 mm) (AI.9517)

CONDENSERS

• WD (Working distance): 75 mm, without condenser: 187 mm
• The condenser can be removed to increase WD (178), allowing multilayered culture flasks
• With slot for phase contrast/embossed contrast/Hoffman contrast sliders

For AI.1xxx and AI.3xxx models

• Condenser N.A. 0.30 with iris diaphragm. WD* 75 mm, without condenser: 187 mm

 For AI.4xxx models

• Height adjustable Kohler condenser N.A. 0.30 with iris diaphragm and 3 filter holders and shutter function.
• Mounted on a backwards tilting illumination column allowing easy access to samples and placement multilayered culture flasks, without removing the condenser

WD = Working distance

FOCUS ADJUSTMENT

• Coaxial 37.5 mm coarse and fine adjustments with 200 graduations
• Precision 1 μm, 0.2 mm per rotation
• Fine focus knobs are left/right interchangeable

ILLUMINATION

• Transmitted 3W NeoLED™ illumination with adjustable intensity
• Internal power supply 100-240 V (CE). Fuse 500 mA 250 Vac

FLUORESCENCE
For models with fluorescence LED light source
LED epi-fluorescence attachment with 365, 485 and 525 nm LED
Supplied with standard long pass filters cubes:

• Blue excitationEX: 460-495 nm BS: 505 nm EM: 510 nm LP  (AI.9745)
• Green excitation EX: 510-550 nm BS: 570 nm EM: 575 nm LP  (AI.9746)
• UV excitation EX: 330-385 nm BS: 410 nm EM: 420 nm  (AI.9748)

Other fluorochrome optimized filters cubes are also available,
see separate datasheet

Rotating fluorescence filter wheel
Fluorescence models are supplied with 3 cubes with fluorescence filters for Blue, Green and UV excitation

SMART LIGHT CONTROL
This intelligent function:

• memorizes the light intensity level for each objective
• increases comfort
• saves valuable time during routine magnification shifts
• includes a sleep function

The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length

Four main benefits:

• More oblique light from the NeoLED™ light source, which increases the light output significantly
• Less energy is required to achieve this level of light intensity
• The larger aperture of NeoLED™ allows the optical system of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics
• Super long life span, up to 50.000 hrs nominal, L70 norm

PACKAGE CONTENT

• Supplied with Ø 65 glass plate and universal cell culture dish holder
• Power cord, dust cover and user manual
• Fluorescence models are supplied with an anti-reflection shield to be mounted on the condenser and an orange protection shield
