BioBlue

EYEPIECE(S)

• WF10x/18 mm Wide field
• Polarization models are supplied with one extra WF 10x/18 mm eyepiece with crosshairs and micrometer
• Secured and with pointer for monocular models
• The BioBlue EVO models are supplied with WF 10x/20 mm eyepieces

HEAD

• All heads are 360° rotatable and secured
• Monocular models with 45° inclined tubes

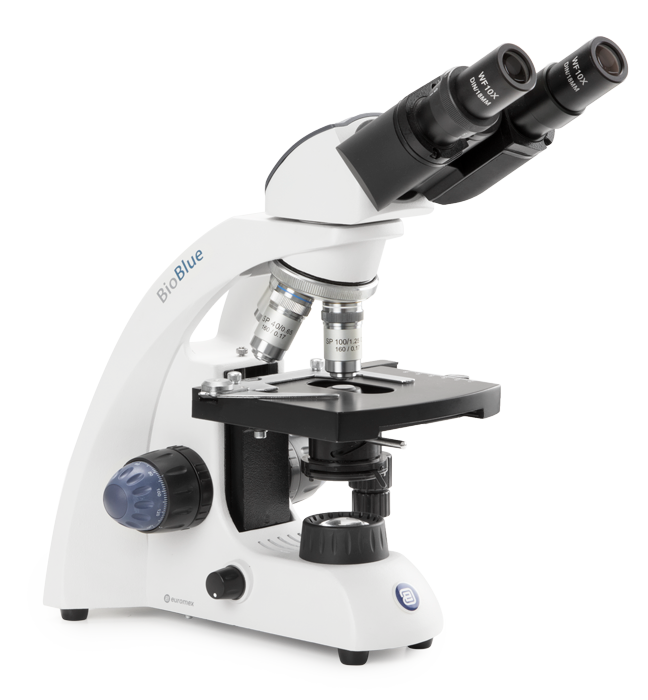

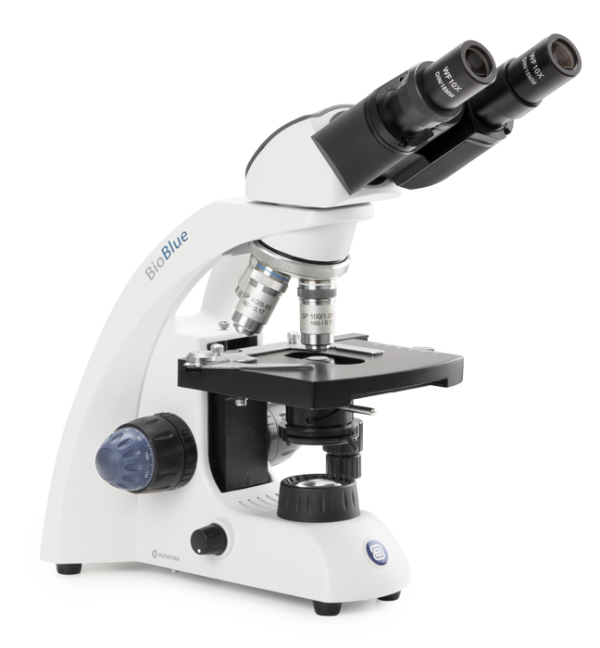

• Binocular and trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with a ± 5 diopter adjustment on the left tube

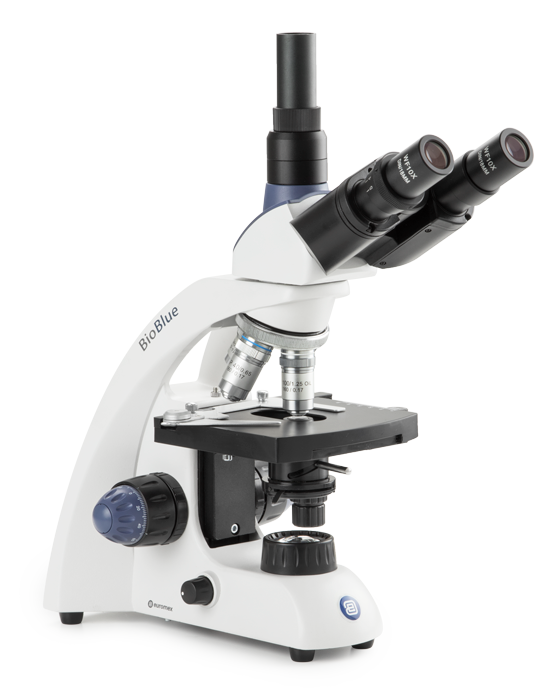

• The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image
• Models with digital head are supplied with a integrated 5.0 MP 1/2” CMOS sensor with 2560 x 1920 pixel resolution USB 2.0 camera

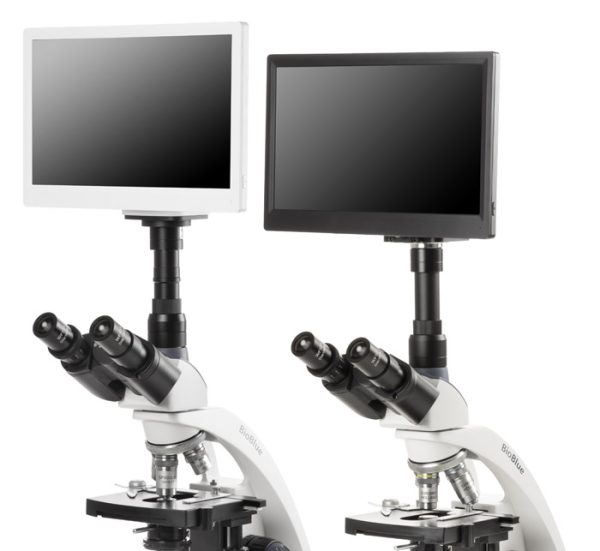

• Models supplied with a 7” LCD screen
• Optional discussion head available

  NOSEPIECE
  Reversed quadruple nosepiece on ball bearings. Models for polarization are supplied with a swing-out analyzer

  OBJECTIVES – 45 MM parfocal


  • Supplied with semi plan 4x/0.10, 10x/0.25, S40x/0.65, S60x/0.85, S100x/1.25 oil immersion objectives configuration is depending on model
  • The S40x, S60x and S100x oil immersion objectives are spring loaded (to prevent damage to sample and objectives)FOCUSING

    • Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm per graduation, 0.4 mm per rotation
    • Total travel approximately 23 mm
    • Supplied with an adjustable rack stop to prevent damage to sample and objectives
    • The coarse adjustment is equipped with friction controlPOLARIZATION EQUIPMENT

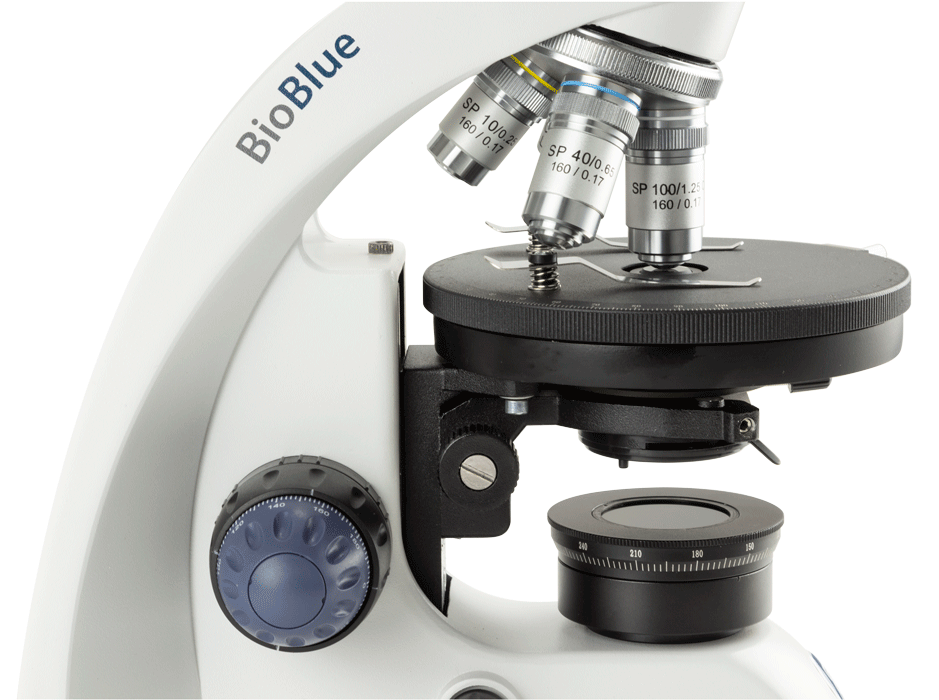

      The swing-out analyzer is mounted in a slider under the head. The rotatable 360° polarizer fits on the collector lamp

      POLARIZATION MODELS


      • Supplied with one extra WF 10x/18 mm eyepiece with crosshairs and micrometer
      • Equipped with analyzer, mounted in a slider under the head
      • 360° Rotatable, graduated polarizer on the lamp house
      • Standard supplied with H-LED illumination for correct color rendering (very similar to the halogen light spectrum) and an integrated 100-240 Vac power supply
      • Polarisation attachments for standard microscopes are available optionally


        ANTI-THEFT SLOT
        At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft

        PACKAGE CONTENT


        • Supplied with power cord, three rechargeable AA batteries, dust cover, a spare fuse, white filter, user manual and 5 ml immersion oil for models with S100x objective
        • Polarisation models are supplied with a cross hair eyepiece for centering
        • All packed in a polystyrene boxImages are reference only. Actual product may be different.
