Introduction:

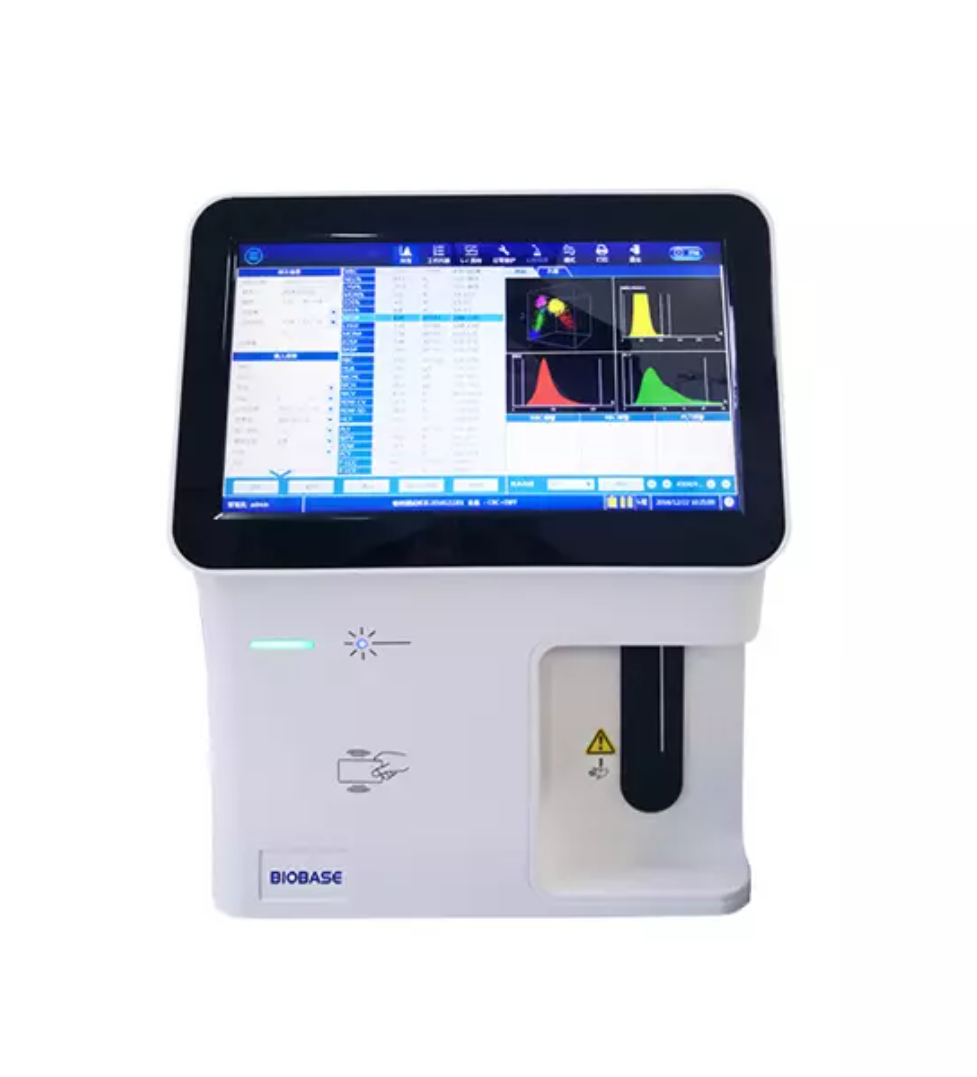

The 5-part hematology analyzer is an in vitro diagnostic device developed based on laser flow cytometry analysis, nucleic acid fluorescence staining and other technologies, which can quantitatively and qualitatively analyze components such as red blood cells, white blood cells and platelets in the blood.
Features:
1. Throughput 60t/h.
2. 14-inch touch screen.
3. Tri-angle laser scatter+flow cytometry method+impedance method for counting.
4. 3D holographic scattergram displays the accurate 5-part differentiation of WBC.
5. Large storage capacity: 100,000 results(including histogram, scattergram, patient information).
Technical Parameters:
| Model |
BK-6310 |
| Throughput |
60 tests/hour |
| Assay Items |
5 parts, 29 parameters, 3 histograms, 3D scattergram |
| Principle |
Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test |
| Test Mode |
CBC mode, CBC+DIFF mode venous whole blood, Capillary whole blood and prediluted |
| Parameters |
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS#
4 research parameters: ALY%, ALY#, IG%, IG# |
| Performance |
Item |
Linearity Range |
Carry Over |
CV |
| WBC |
0~300*10^9/L |
≤0.5% |
≤2.0% |
| RBC |
0~8.00*10^12/L |
≤0.5% |
≤1.5% |
| HGB |
0~250g/L |
≤0.5% |
≤1.5% |
| PLT |
0~3000*10^9/L |
≤1.0% |
≤4.0% |
| Sample Volume |
CBC+DIFF mode: ≤20μl
CBC mode: ≤10μl |
| Storage |
100,000 results including histogram, scattergram and patient information |
| Interface |
4 USB ports, 1 LAN port Bi-direction LIS, support HL7 protocol, Internal RFID reader |
| Power Supply |
AC220V±10%, 50/60Hz; 110V±10%, 60Hz; 400VA |
| Package Size(W*D*H) |
575*490*690mm |
| Gross Weight |
46kg |
| Reagent Package Size |
330*330*330m, 400*290*240mm, 400*290*240mm |
| Reagent Gross Weight |
22kg, 2kg, 2kg |
