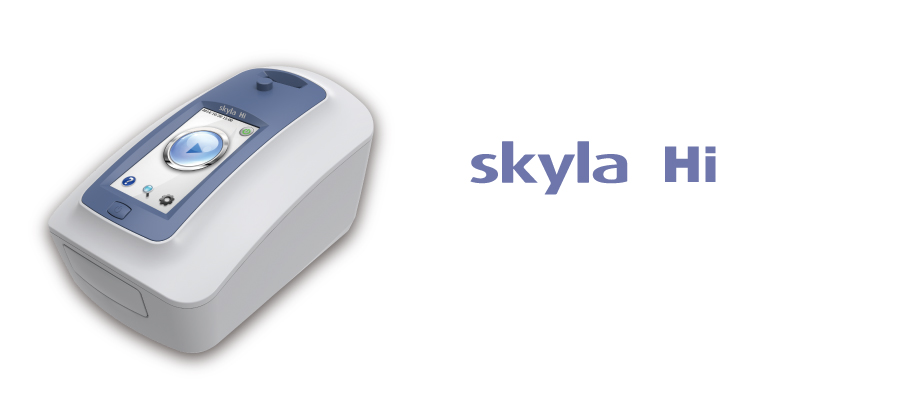

Skyla , Analyzer
Features
Only 1 μL Fingertips Blood or Venous Blood (Depends on test item)
Without pretreatment. HbA1c test requires only 1 μL/ CRP test requires only 5 μL of fingertips or venous blood.
Fully Automated Operations
All steps are designed automatically from checking the validity of cartridge to printing the results.
Two Specimens per Run
The device allows two specimens be tested in one run
6 min Test Time to Get the Result (Depends on test item)
HbA1c and CRP takes only 6 minutes to complete the test. Lipid Panel take 10 minutes to complete the test.
Main Specification
Principle
Turbidimetric Method / Biochemistry
Device
Testing Time-6~10 minutes (depends on test items)
Display and Interface05″ TFT color touch screen LCD
Memory Capacity050,000 test results
Dimension of Analyzer0270 x 188 x 148 mm
Weight of Analyzer01.7 kg
Dimension of Printer Module-134 x 100 x 82.7 mm
Weight of Printer Module-0.37 kg
Power Supply-100~240 volts AC, 50-60Hz
Data Transmission-USB 2.0 x 4 / USB 3.0 x 1 / RS232 x 1 / RJ45 x 1 / Wi-Fi (optional)
Reagent and Samples-Samples
Fingertips blood or venous bloo-
Samples Volume-1 ~ 30 μL (depends on test item)
Storage Temperature (Reagent)-2 ~ 8˚C
Operating Condition-Humaidity
Relative humidity < 95% (Non-condensing)
Temperature-10 ~ 32 ˚C
