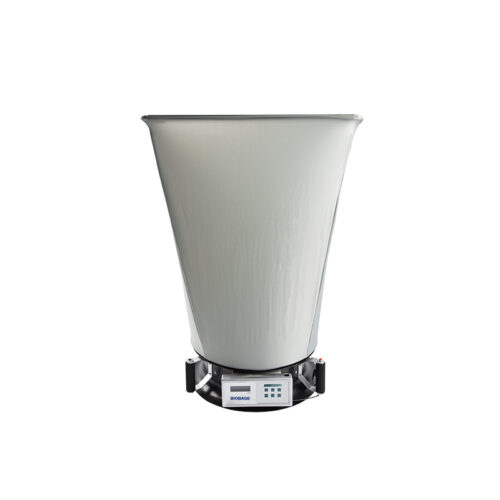

Air Volume Meter – BK-AVM-1 Series, ESMC, BIOBASE, China
Description ：
Air volume meter is widely used in HVAC, purification technology and other industries for sealing and pipe air volume, temperature, humidity measurement.
Features:
- Multi-point and multi-time automatic detection of wind pressure, correct, fast and simple.
- Single display measurement, can also be multi-tuyere air volume computer centralized display.
- Hole plate standard wind tunnel device for multi-point air volume correction.
- LCD display, with external interface, and BK-AVM-1S has a touch screen interface.
Notice: Do not measure corrosive gases, gases containing metal particles, and gases containing large particles and high concentration of dust.
Technical Parameters：
| Model | BK-AVM-1 | BK-AVM-1S | |
| Air Volume
|
Range | 150～3500m³/h | 50-2500m³/h |
| Accuracy | ±5%(F•S) | ||
| Resolution | 1 m³/h | ||
| Temp measurement | Range | / | 0～60℃ |
| Accuracy | / | ±0.5℃ | |
| Resolution | / | 0.1℃ | |
| Humidity measurement | Range | / | 0～100%RH |
| Accuracy | / | ±0.1%RH | |
| Resolution | / | 0.1%RH | |
| Power Supply
|
DC | 7.4V/1800mA | |
| AC | 220V±10% 50Hz±2Hz | ||
| Storage | Up to 999 test results | Up to 5000 test results | |
| Standard Printer | Bluetooth printer | ||
| Operating Environment |
|
||
| Storage Environment |
|
||
| Air Flow Hood | Standard: 570*570mm, 830*830mm | ||
| Package Size | 750*750*180mm | ||
| Gross Weight | 10kg | ||
