- Model: VO49cool
- Volume: 49 L
- Manufacturer: Memmert
- Country of Origin: Federal Republic of Germany
Constant climate chamber VOcool
For gentle drying of bacteria and starter cultures or simulation of intercontinental flights.

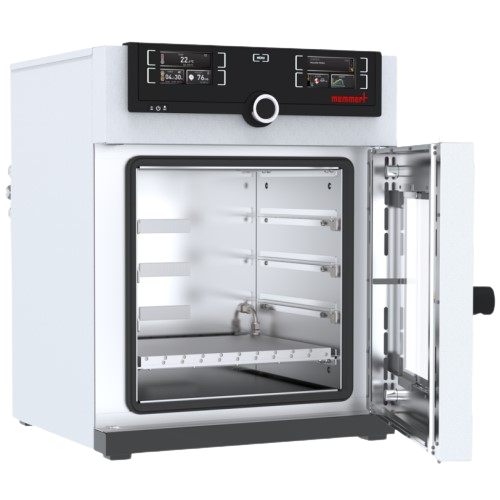

Cooled vacuum oven, VO49cool, 49 L
Standard delivery Climate chamber
The direct contact between the load and the heatable thermoshelves in the chamber of the vacuum oven ensures rapid and uniform temperature control of food, cosmetics, watches, books, PCBs or injection moulds, without the loss of heat.
Description for Cooled vacuum oven, VO49cool, 49 L
The Memmert VO49COOL vacuum oven has a capacity of 1.7 Cu Ft (49 L) with a temperature range of Ambient +20° to 200°C and comes with dual digital display controllers with programmaning. Memmert VO vacuum ovens features the high-performance turbo dryer which impresses with its many intelligent features for gentle drying and precise, rapid temperature control, digital pressure control, directly heated and individually controllable thermoshelves, and simple programming via ControlCOCKPIT or AtmoCONTROL software. Combined together, the speed-controlled vacuum pump and the vacuum oven VO are an unbeatable energy-efficient pairing. The pump fits neatly inside the matching lower chamber.
- Temperature range up to +200°C
- Stainless steel interior
- Vacuum control range: 5 mbar up to 1100 mbar
- Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
- Vacuum pump (PMP) sold as an accessory
- Inert gas connection for VO 49 and VO 101
- 3 year warranty
| Technical Specifications: | |
| Volume approx. | 1.7 Cu Ft (49 L) |
| Vacuum range | 5 to 1,100 mbar |
| Temperature range | +5°C (at least 20 below ambient temperature) to +90°C |
| Setting temperature range | +5° to +90°C |
| Setting accuracy °C | 0.1°C |
| Temperature variation in Time (aluminum thermoshelf) | ≤±0.3 K |
| Temperature uniformity (surface) at +160°C / 20 mbar (aluminum thermoshelf) | ≤±2.5 K |
| Contoller | TwinDISPLAY: dual TFT color touchscreens, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed, archive of ramps and program sequences, real-time view of program sequences, Loops can be inserted within a temperature contol program at any place, download and manage programs via Ethernet or USB |
| Interfaces | Ethernet and USB |
| Control technology | Digital over and undertemperature monitor, temperature monitoring band automatically linked to the setpoint (ASF), monitor relay for reliable heating cut-off in case of default, mechanical temperature limiter (TB), multi-level-overtemperature (MLOP) for each thermoshelf |
| Housing | Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, safety glass door with inner bullet-proof glass and external anti-splinter screen |
| Interior | Stainless steel interior, material 1.4404 (ASTM 316L), hermetically welded, with removable mountings at the sides for cleaning, including thermoshelf guide bars, as well as mounting on top to avoid turbulences |
| Vacuum connection | Small flange DN16, and gas inlet with fresh air supply |
| Vacuum control | Digital electronic pressure control for a speed-controlled vacuum pump. Tubing for vacuum, air and inert gas are made of material 1.4571 (ASTM 316 Ti). Adjustable from 5 mbar up to 1100 mbar. Programmable, digitally controlled inlet for air |
| Pump control | Optimised rinsing procedures for the pump membranes as well as signal output for pump ON/OFF |
| Air intake | Rapide aire intake for door opening without alteration of selected vacuum setpoint |
| Permitted final vacuum | 0.01 mbar |
| Maximum leakage rate | 0.01 bar/h |
| Chamber Dimensions (W x H x D) | 15.2 x 15.2 x 13 inches (385 x 385 x 330 mm) |
| Distance between thermoshelves | 3 inches (75 mm) |
| Maximum load per oven | 132 lbs (60 kg) |
| Maximum number of thermoshelves | 2 |
| Maximum number of thermoshelves (with premium module) | 4 |
| Maximum loading per thermoshelf | 44 lbs (20 kg) |
| Exterior Dimensions (W x H x D) | 21.7 x 27 x 18.9 inches (550 x 687 x 480 mm) (door handle adds 38 mm) |
| Safety glass door | Textured stainless steel frame with spring-loaded safety glass on inside and anti-splinter screen ESG on outside of door |
| Door seal | Endless silicone profile seal |
| Thermoshelves | aluminium eloxadised , mat. 3.3547 (ASTM B209) – with integrated large-area heating including local temperature sensing (Pt100, 4-wire-circuit); individual overtemp. protection for each shelf. Further data see stainless steel number inner working chamber |
| Standard works calibration certificate | +160°C at 20 mbar pressure measured in the middle point of the shelf. A separate certificate is provided for each thermoshelf ordered and shipped together with the vacuum oven |
| Electrical | 230 V, 50/60 Hz, 2,020 Watts |
| Net weight approx. | 183 lbs (83 kg) |
| Gross weight (packed in carton) approx. | 229 lbs (104 kg) |
| Shipping Dimensions (W x H x D) | 26 x 34.3 x 23.2 inches (660 x 870 x 590 mm) |
Images are reference only. Actual product may be different.
