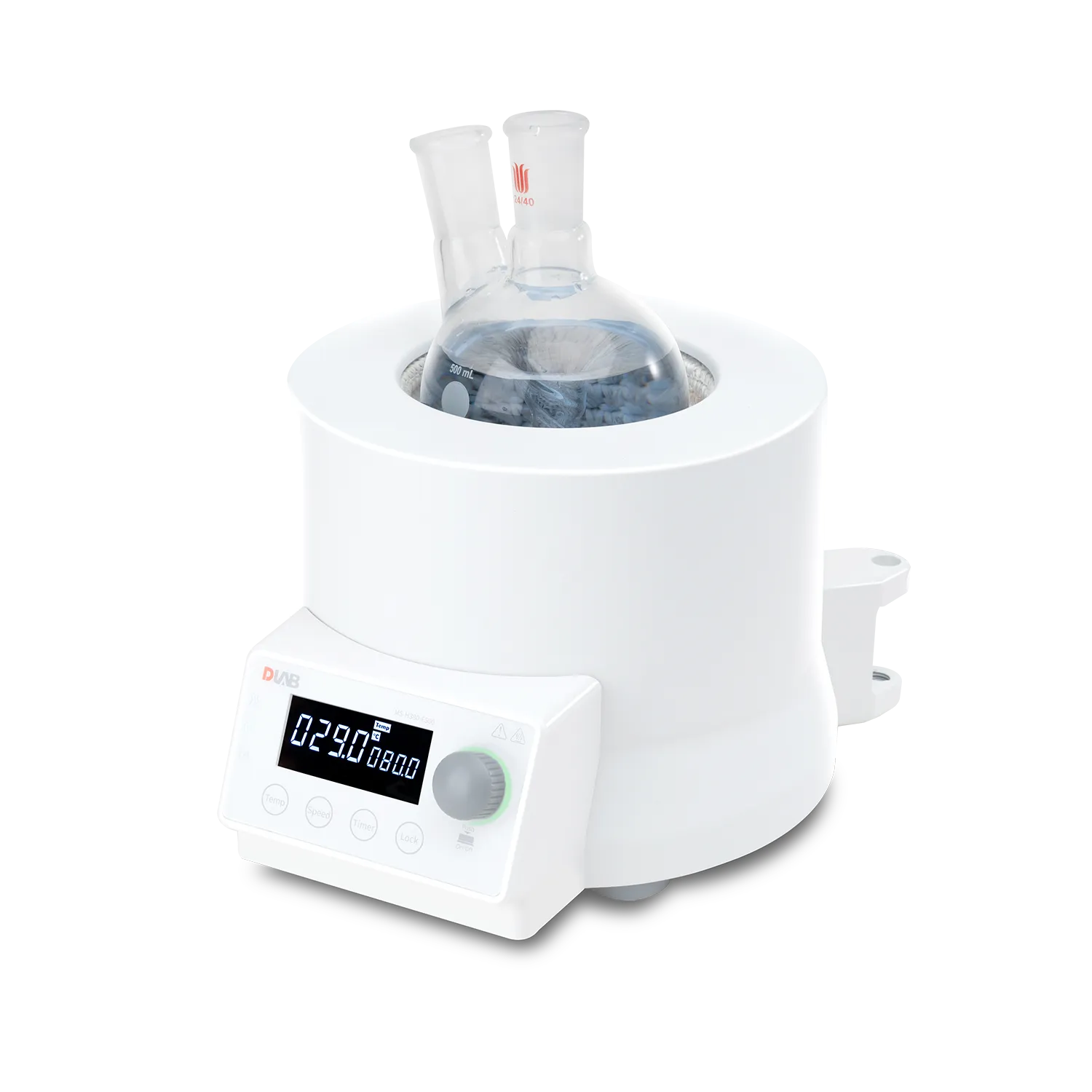

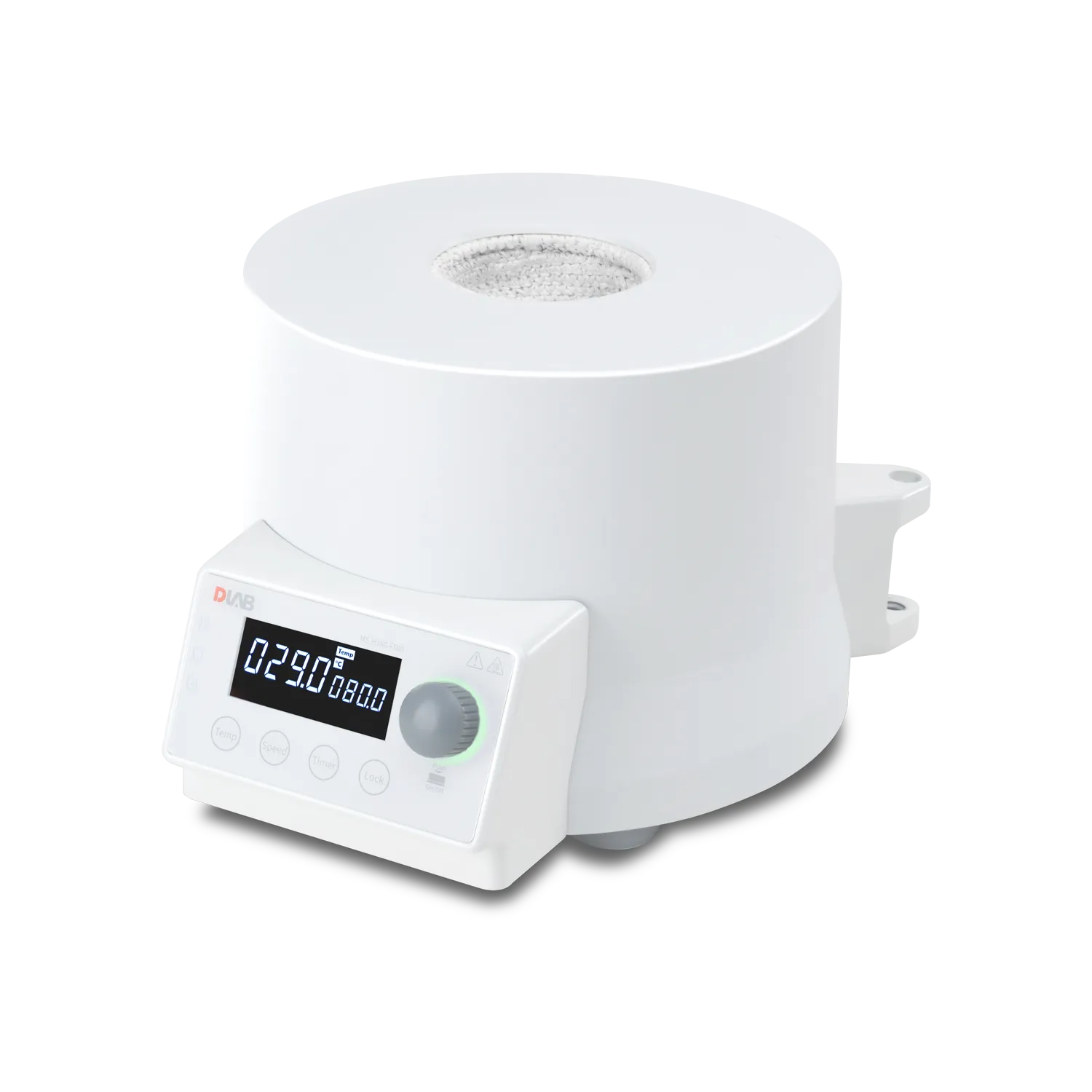

MS-H380-F100/250/500/1000/2000 LCD Digital Magnetic Stirrer Heating Mantle

Featurare

• Integrated metal housing with powder coating; robust and stable structure, corrosion-resistant.
• Glass fiber inner sleeve and high-quality aluminum silicate wool insulation ensure uniform heating,high-temperature resistance, fast heating, and excellent thermal insulation.
• Dual independent safety circuit design continuously monitors the device. In case of overheating or sensorfailure, the machine will trigger an error and stop heating. In case of a short circuit, the machine willautomatically cut off power to ensure operator safety.
• Residual heat warning function: when the plate surface temperature exceeds 50’c, after heating is turned offthe screen will flash a “HOT” warning.
• Protection features: overcurrent protection, ground fault protection, and over-temperature protection..Brushless DC motor: spark-free, long lifespan, low noise, maintenance-free, and stable operation.
• • Safety lock prevents accidental changes in operating status.
  • Multiple flask volume options: 100,250,500,1000,2000 mL.
  • Dual-side bracket design allows convenient placement of reaction flasks and PT1000 sensors from diferentangles.
  • LCD display shows speed, time, and temperature parameters clearly and intuitively.
  • Data communication:RS232 interface.
  • Buzzer alert: countdown timer end is indicated by a”beep-beep-beep” sound.
  • Timer function: time range from 1 minute to 99 hours 59 minutes. Heating stops when countdown ends, butstirring continues to avoid sample damage from residual heat.
  • Operating status indicator lights:Green is Reached to set temperature; Blinking green is heating to settemperature; Red is fault/alarm.

  Application Scenarios

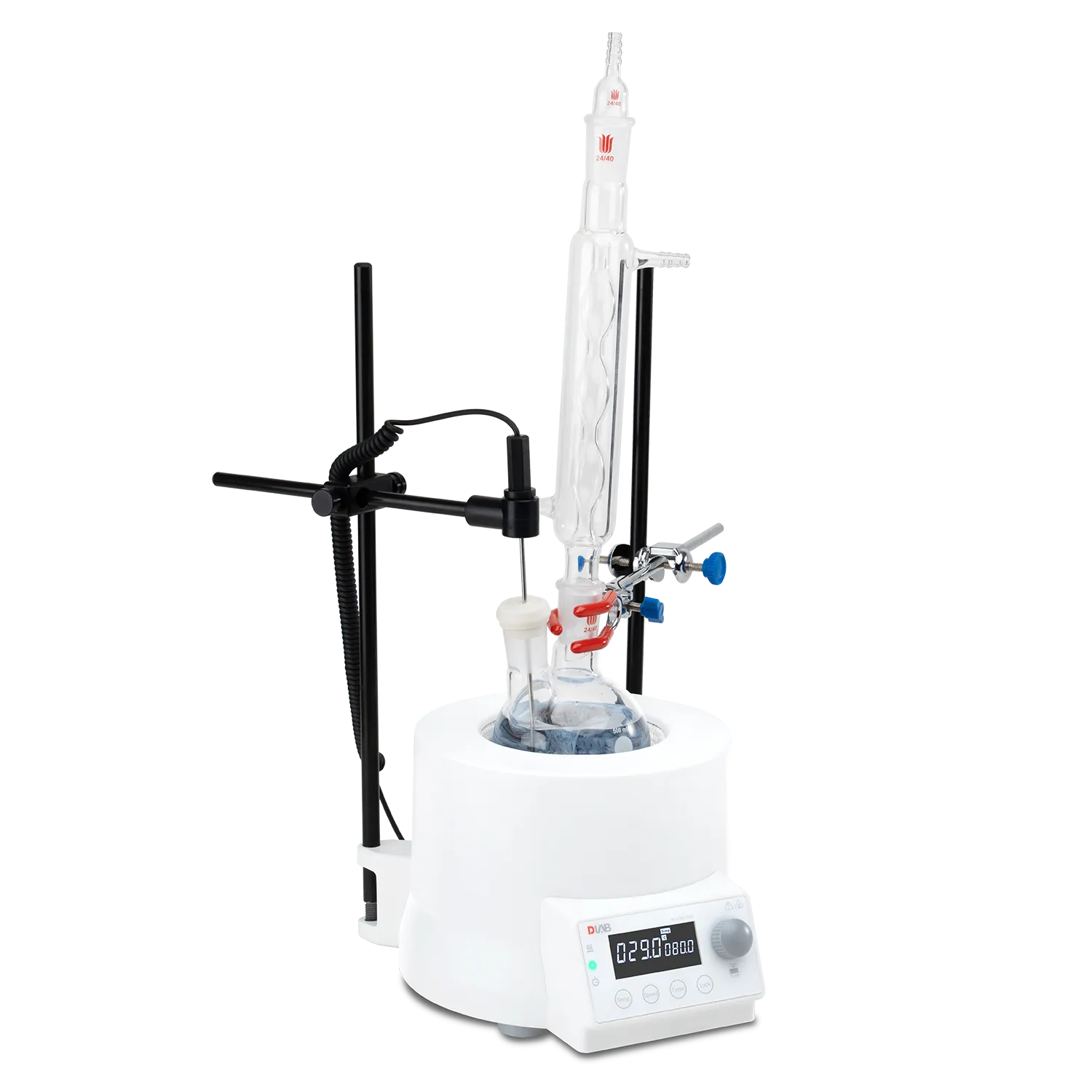

  Organic synthesis,polymerization, distillation and purification,sample dissolution and extraction, sample pretreatment before analysis, catalytic reaction kinetics research, etc,

  Target Customers

  Technicians in chemical, biological, pharmaceutical, and materials enterprises,researchers in universities and research institutes, quality control analysts in laboratories related to pharmaceuticals, food.environmental protection, etc.

  Model：

  F100

  F250

  F500

  F1000

  F2000

  PRODUCT PARAMETERS

  Speed range-100-1500rpm

  Speed display-LCD

  Temperature display-LCD

  Heating temperature range-25-380°C

  Temperature control accuracy-25-380°C

  Temperature display accuracy-±0.1°C

  External temperature sensor-PT1000(accuracy±0.2°C)

  “Hot” warning-50°C

  Overheating temperature protection-500°C

  Motor type-Brushless DC motor

  Data connector-RS232

  Timer function-1min-99h59min

  Protection class-IP21

  Motor rating output-5W

  Power-130W

  Heating output-110W

  Voltage,Frequency-100-120V，60HZ；200-240V，50Hz

  Dimension [WxDxH]-267x227x169mm

  Weight-3.8Kg

  Permissible ambient temperature-5-40°C

  Permissible ambient humidity-80%

  Applications-100mL、250mL、500mL、1000mL、2000mL round bottom flasks
