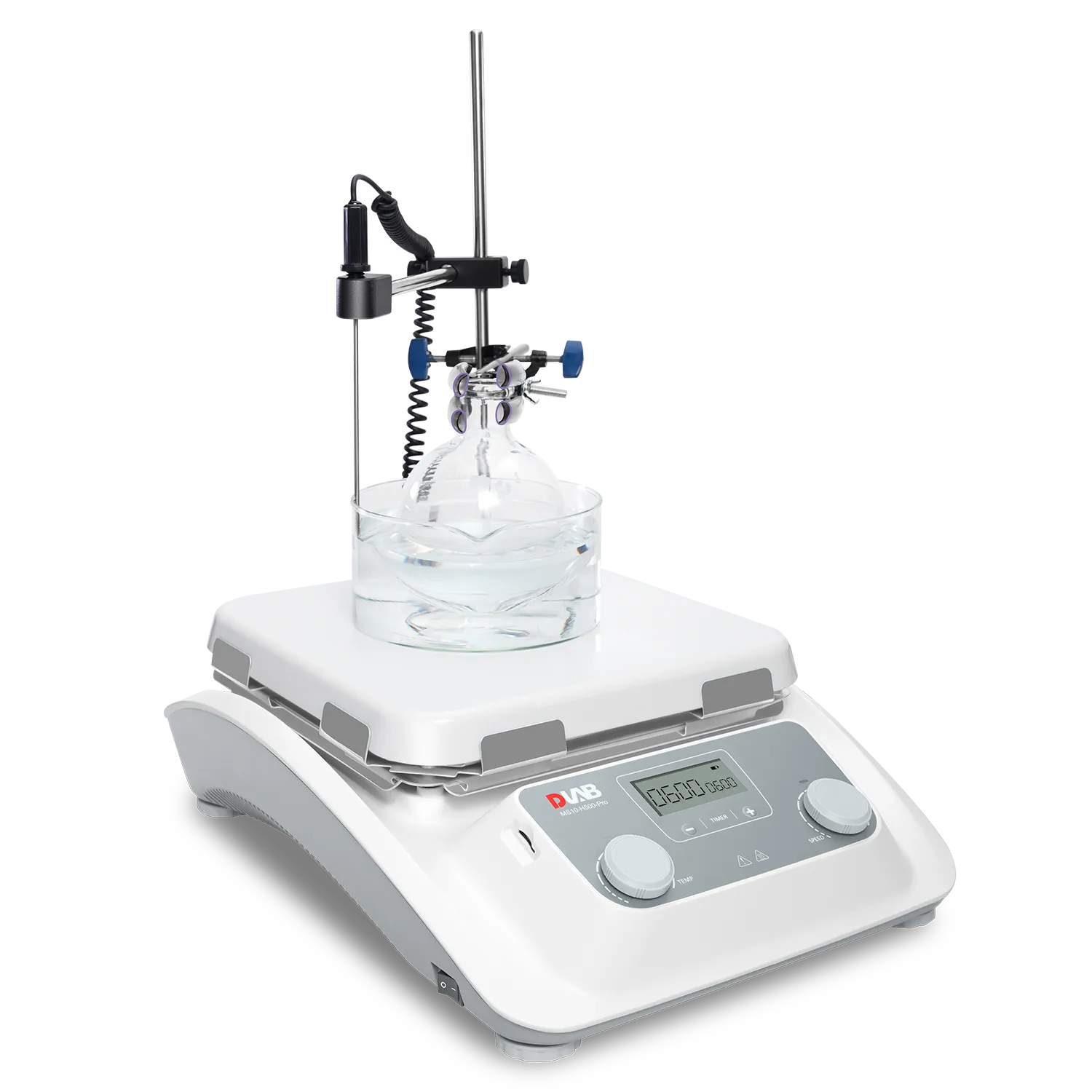

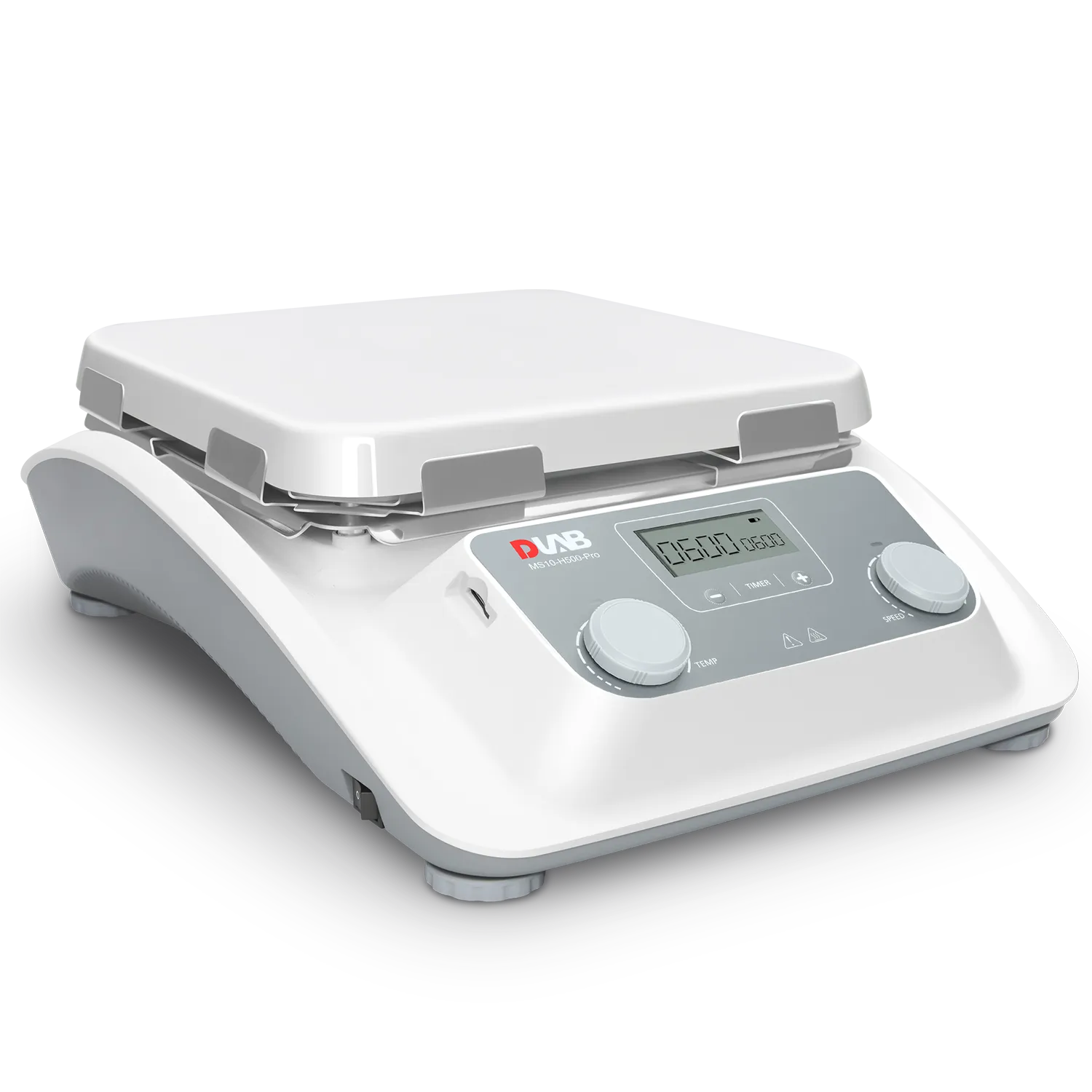

MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer With 10 Inch Ceramic Plate
MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer With 10 Inch Ceramic Plate - Image 2
MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer With 10 Inch Ceramic Plate - Image 3
, , ,

MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer With 10 Inch Ceramic Plate

+ Free Shipping
  • Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
  • Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
Categories: , , , Tags: , , , ,
  • Large volume: Up to 30L of liquid on 10-inch hot plate with powerful magnetic stirring
  • Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
  • LCD display for precise monitoring of speed and temperature . External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy
  • at ±0.2°C
  • Digital speed control of 100 -1500rpm
  • Max. heating plate temperature 500℃
  • The “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
  • Data connector : The SD card also records the instrument’s running data in real time.
  • Timing function: the running time of the instrument can be set.
Model：MS10-H500-Pro

PRODUCT PARAMETERS

Cat.No.-8030132117
Work plate Dimension-254x254mm(10 inch)
Work plate material-Glass ceramic
Max. stirring quantity [H2O]-30L
Speed range-100-1500rpm，resolution±1rpm
Speed display-LCD
Temperature display-LCD
Heating temperature range-Room Temp.-500℃, increment 1℃
Temperature control accuracy-±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy-±0.1℃
External temperature sensor-PT1000(accuracy ±0.2℃)
“Hot” warning-50℃
Overheating temperature protection-540℃
Motor type-Brushless DC motor
Stirring positions-1
Max. magnetic bar length-80mm
Data connector-SD card
Timer function-1min-99h59min
Protection class-IP20
Motor rating output-10W
Power-1700W
Heating output-1500W
Voltage,Frequency-100-120V/200-240V，50/60Hz
Dimension [WxDxH]-328x424x138mm
Weight-7.2kg
Permissible ambient temperature-5-40℃
