- Binocular and trinocular models
- HWF 10x/22 mm eyepieces
- Reversed nosepiece for maximum 5 objectives
- Plan, plan fluarex and plan semi apochromatic fluarex ioS objectives
- Integrated mechanical stage
- Coaxial coarse and fine adjustments
- Height adjustable abbe n.a. 1.25 condenser with iris diaphragm and filter holder
- 3 W lED transmitted illumination

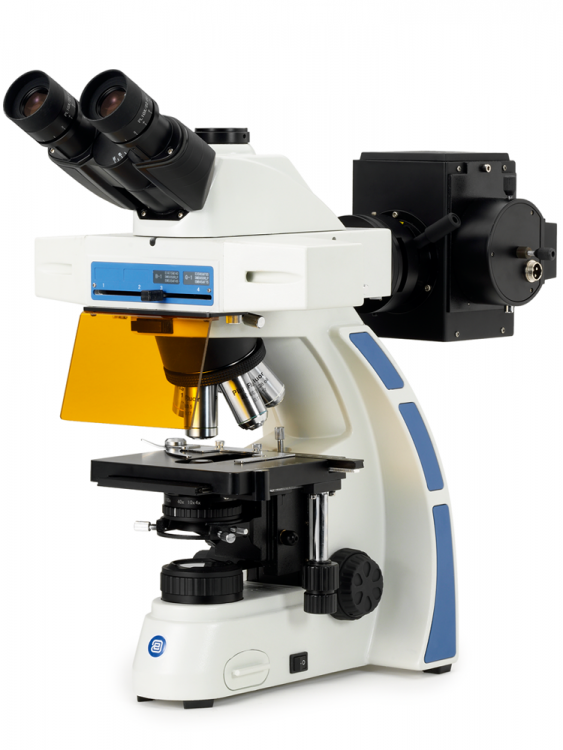

- Fluorescence attachment for maximum 4 filter blocks and with 100 W mercury vapor incident illuminati
- Fluorescence attachment with single filter block and 455 nm (Blue), 560 nm (Green) or 365 nm (UV) in
- Ergonomic stand and head
EYEPIECES
• HWF 10x/22 mm eyepieces
• All eyepieces can be secured by an Allen screw
HEAD
• Binocular and trinocular Siedentopf type heads are with 30° inclined tubes
• Interpupillary distance from 50 to 75 mm
• Two ± 5 diopter adjustments
• A unique rotating system allows the ergonomical positioning of both tubes in a high (431 mm) and in a low position (397 mm)
NOSEPIECE
• Revolving and reversed nosepiece for maximum five objectives
• The fluorescence models with mercury vapor lamp are equipped with an orange UV protection shield
OBJECTIVES
• Plan 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion IOS objectives
• Plan Fluarex 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.30 oil immersion IOS objectives
• Plan semi apochromatic Fluarex 4x/0.13, 10x/0.30, S40x/0.75 and S100x/1.28 oil immersion IOS objectives
All S40x, S60x and S100x oil immersion objectives are spring loaded. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
FOCUSING
• Coaxial coarse and fine adjustments, 200 graduations,1 μm per graduation, 200 μm per rotation, total travel range is approximately 28 mm
• Supplied with an adjustable rack stop to prevent damage to sample and objectives
• The coarse adjustments are equipped with friction control
STAGE
• 150 x 140 mm stage with integrated 76 x 50 mm X-Y mechanical stage
• A ceramic stage is also available on request
• Designed for 2 slides
CONDENSER FOR BRIGHTFIELD
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm
• Supplied with a white diffusion filter
• Phase contrast rings mounted in slider can be inserted in the condenser for 10x and S40x or 20x and S100x phase contrast objectives
• A darkfield stop in slider for the 10x, 20x and S40x objectives can also be inserted with magnification indication
CONDENSER FOR FLUORESCENCE
The fluorescence attachment is equipped with an integrated condenser with iris diaphragm and with a field diaphragm
CONFIGURATIONS
The Oxion microscope is available in many configurations and can be upgraded with a variety of contrast types.
PACKAGE CONTENT
• Supplied with power cord, dust cover, white filter, user manual and 5 ml immersion oil for models with S100x objective
• All packed in a polystyrene box
Images are reference only. Actual product may be different.
