- Maximum heating temperature is 380°C
- High resolution LCD displays actual temperature and speed
- Brushless DC motor is maintenance free
- Aluminum ceramIc coating work plate, allowing immediate heat transfer

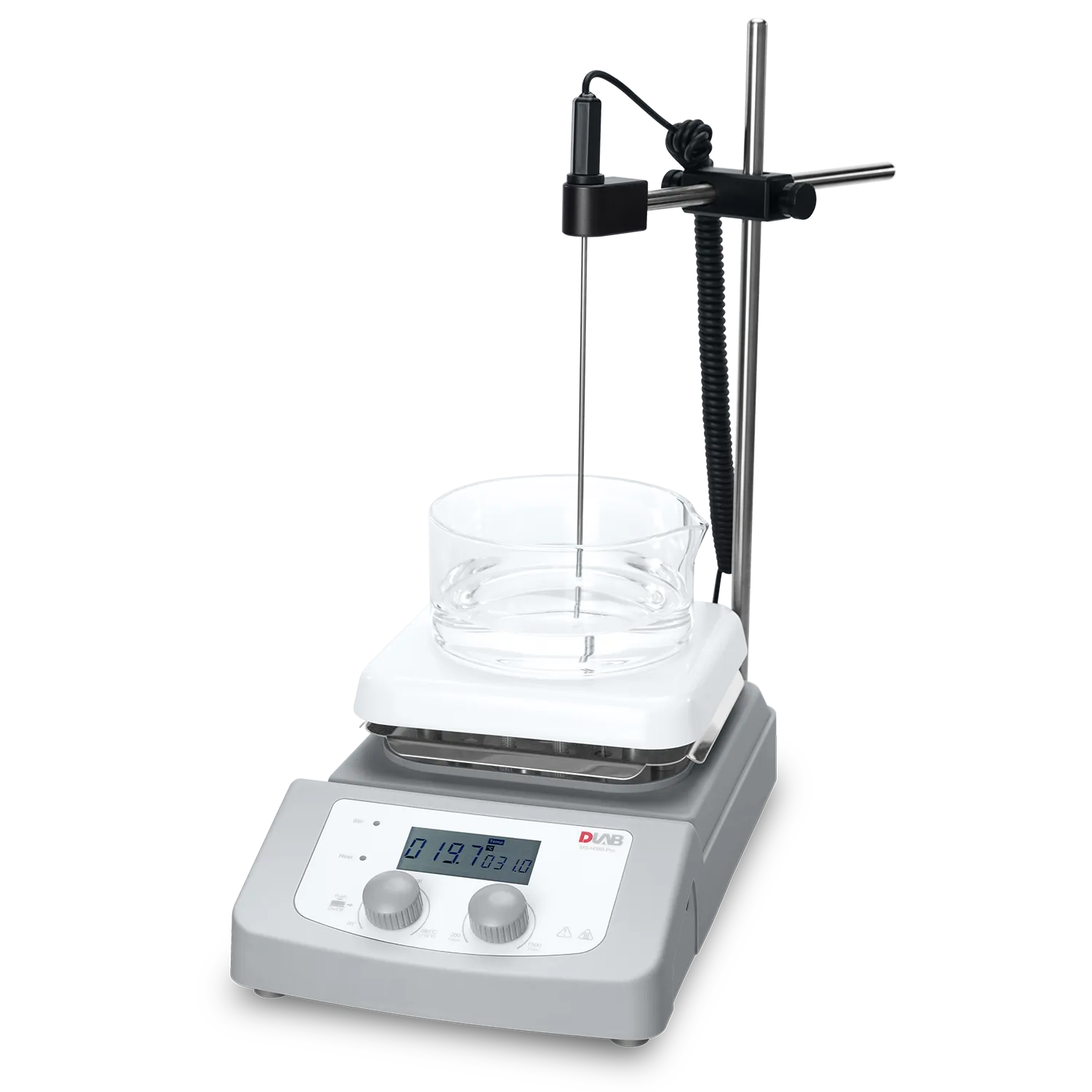

- External temperature control is possible with temperature sensor PT1000
- Digital speed control with maximum speed up to 1500rpm
- Maximum stirring quantity of H2O at 5L
PRODUCT PARAMETERS
Cat.No.-8030268115
Work plate Dimension-140x140mm
Work plate materia-Aluminum cover with ceramic coating
Max. stirring quantity [H2O]-5L
Speed range-200-1500rpm
Speed display-LCD
Temperature display-LCD
Heating temperature range-Room Temp.-380℃
Temperature control accuracy-±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy-±0.1℃
External temperature sensor-PT1000 ( accuracy±0.2℃ )
“Hot” warning
–
Overheating temperature protection-420℃
Motor type-Brushless DC motor
Stirring positions-1
Max. magnetic bar length-50mm
Data connector-Timer function
–
Protection class-IP21
Motor rating output-1.8W
Power-510W
Heating output-500W
Voltage,Frequency-100-120V/200-240V，50/60Hz
Dimension [WxDxH]-320x180x108mm
Weight-2.2kg
Permissible ambient temperature-5-40℃
Permissible ambient humidity-80% RH
