BrandBIOBASE
Product originCHINA
ModelYDS-3S(6) YDS-3 YDS-10 YDS-10-80 YDS-10-125
Introduction:

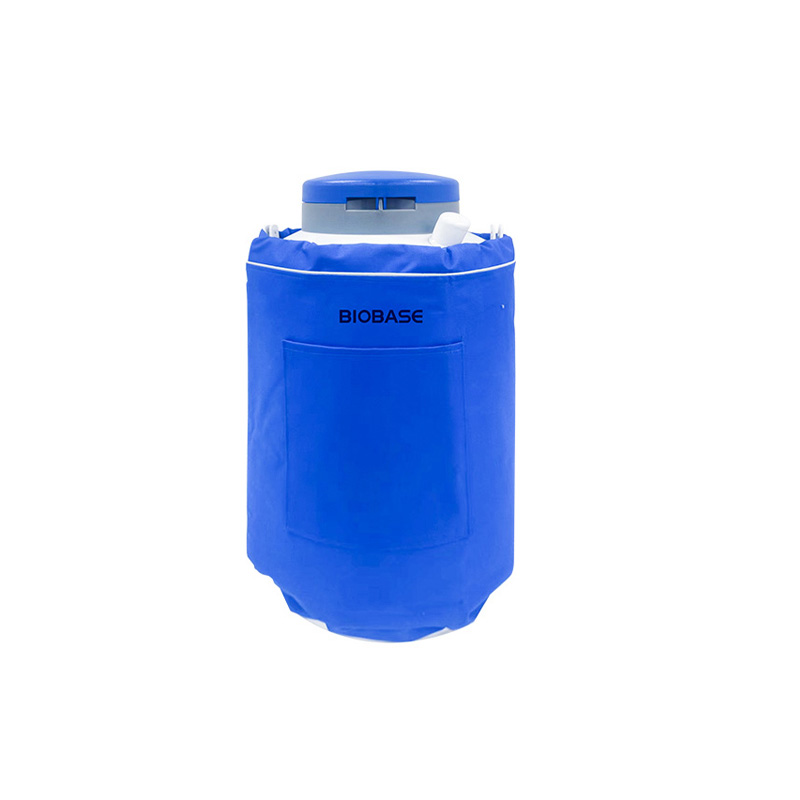

The Static Storage Liquid Nitrogen Container is a specialized cryogenic storage vessel designed for the long-term preservation of biological samples, such as cells, tissues, and other sensitive materials, in extremely low temperatures.
Features:
1. High vacuum, multi-layer thermal insulation design.
2. Low static evaporation rate, ultra-low evaporation loss.
3. Made of high-quality alloy aluminum.
4. Vacuum warranty for 5 years.
5. Optional liquid level ruler.
Technical Parameters:
| Model | Unit | YDS-3S(6) | YDS-3 | YDS-10 | YDS-10-80 | YDS-10-125 |
| Capacity | L | 3 | 3 | 10 | 10 | 10 |
| Empty Weight | kg | 4.2 | 3.4 | 6 | 6.35 | 6.9 |
| Caliber | mm | 50 | 50 | 50 | 80 | 125 |
| Outer Diameter | mm | 223 | 223 | 303 | 303 | 303 |
| Height | mm | 438 | 438 | 530 | 505 | 505 |
| Static Evaporation Loss | L/d | 0.12 | 0.12 | 0.12 | 0.21 | 0.42 |
| Static Holding Time | d | 26 | 26 | 86 | 48 | 23 |
| Canister Specification | mm | Round: φ38*120 | – | – | – | – |
| Canister No.(Standard) | pc | 6 | – | – | – | – |
| Canvas Protective Sleeve | pc | 1 | – | – | – | – |
| Lockable Lid | set | Yes | – | – | – | – |
| Packing Size | mm | 270*285*510 | 360*360*670 |
| Gross Weight | kg | 4.8 | 4 | 7.1 | 7.5 | 8 |
| Model | Unit | YDS-10
S(6) | YDS-10
-80S(6) | YDS-10
-125S(1) | YDS-10
-125-FS |
YDS-20 |
YDS-30 | YDS-30
-80 | YDS-30
-125 |
| Capacity | L | 10 | 10 | 10 | 10 | 20.1 | 31.5 | 31.5 | 31.5 |
| Empty Weight | kg | 6.8 | 7.7 | 8.12 | 8.8 | 12.4 | 15.5 | 16.2 | 16.6 |
| Caliber | mm | 50 | 80 | 125 | 125 | 50 | 50 | 80 | 125 |
| Outer Diameter | mm | 303 | 303 | 303 | 303 | 409 | 455 | 455 | 455 |
| Height | mm | 550 | 555 | 575 | 575 | 675 | 665 | 665 | 665 |
| Static Evaporation Loss | L/d | 0.12 | 0.21 | 0.42 | 0.42 | 0.12 | 0.12 | 0.21 | 0.35 |
| Static Holding Time | d | 86 | 48 | 23 | 23 | 168 | 254 | 147 | 90 |
| Canister Specification | mm | Round:
φ38*120 | Round:
φ60*120 | Round:
φ97*120 | Square:
82*84,
100pcs of 2ml vials | – | – | – | – |
| Canister No.(Standard) | pc | 6 | 6 | 1 | 1 | – | – | – | – |
|
Canvas Protective Sleeve | pc |
√ |
√ |
√ |
√ | – | – | – | – |
| Lockable Lid | set | √ | √ | √ | √ | – | – | – | – |
| Packing Size | mm | 360*360*670 | 460*460*750 | 510*510*810 |
| Gross Weight | kg | 7.9 | 8.8 | 9.2 | 9.9 | 14 | 17.5 | 18.2 | 18.6 |
| Model | Unit | YDS-20
LS(6) | YDS-20
S(6) | YDS-30
LS(6) | YDS-30
S(6) | YDS-30
-80LS(6) | YDS-30
-80S(6) | YDS-30
-125LS(6) | YDS-30
-125S(6) | YDS-30
-125-FS |
| Capacity | L | 20.1 | 20.1 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 |
| Empty Weight | kg | 13.77 | 13.2 | 17.8 | 17.2 | 18.9 | 17.8 | 21.1 | 19.2 | 22 |
| Caliber | mm | 50 | 50 | 50 | 50 | 80 | 80 | 125 | 125 | 125 |
| Outer Diameter | mm | 409 | 409 | 455 | 455 | 455 | 455 | 455 | 455 | 455 |
| Height | mm | 680 | 680 | 670 | 670 | 680 | 680 | 680 | 680 | 680 |
| Static Evaporation Loss | L/d | 0.12 | 0.12 | 0.12 | 0.12 | 0.21 | 0.21 | 0.35 | 0.35 | 0.35 |
| Static Holding Time | d | 168 | 168 | 254 | 254 | 145 | 147 | 90 | 90 | 90 |
| Canister Specification | mm | Round:
φ38*276 | Round:
φ38*120 | Round:
φ38*276 | Round:
φ38*120 | Round: φ60*276 | Round:
φ60*120 | Round:
φ97*276 | Round:
φ97*120 | Square:
82*84,
600pcs of
2ml vials |
| Canister No.(Standard) | pc | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Canvas Protective Sleeve | pc | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Lockable Lid | set | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Packing Size | mm | 460*460*750 | 510*510*810 |
| Gross Weight | kg | 15.37 | 14.8 | 18.1 | 19.2 | 20.8 | 19.8 | 23.1 | 21.2 |
