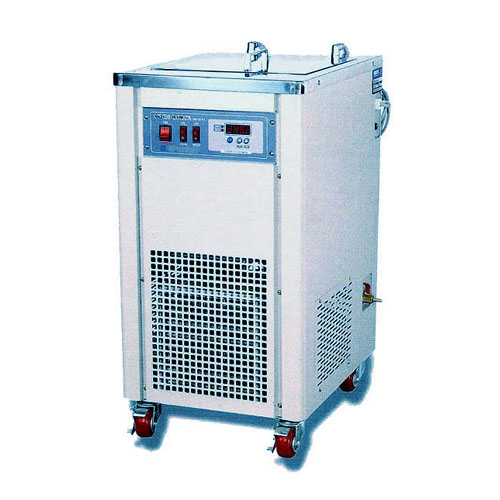

Refrigerator Chiller, HB series, Humanlab, Korea

Refrigerator chiller HB series Humanlab, Korea

Features

Use these flow-through refrigerated chiller that either lack refrigeration or need additional cooling
Built-in circulation pump, refrigerator and cooling water line
Microprocessor PID controller make them idea for any application that requires accuracy and reliability

Specifications

Model		HB-207S	HB-207M
Chamber (Wx8xH)		18 Liter (300x300x200)	36 Liter (350x350x300)
Temp.range		-20 to + 20·C
Pump Capacity		15 Liter/min	30 Liter/min
Refrigerator		1/3 Hp,800 Kcal/hr	1/2 Hp,1500Kcal/hr
Inlet / Outlet		ID 10 mm silicon tube
Timer		Digital, 99hr/59min or continuous
Material		Stainless steel interior and powder coated steel
Control & display		Microprocessor PID control & digital display
Safety device		Over current limiter, Low water cut-off, Alarm
Power source		220VAC,50 or 60Hz
Overall	(WxDxH)	450x600x650mm	500x650x750mm
Weight	(Kg)	35	50
