Ashing furnaces with hinged or lifting door

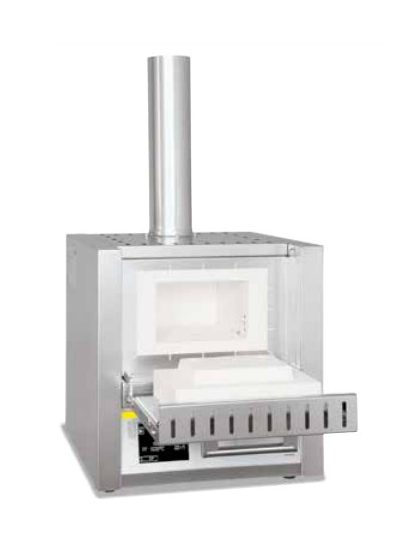

Muffle furnaces Nabertherm LV 3/11 – LVT 15/11 are used especially for ashing in the laboratory. Due to a special system of air inflow and outflow, more than 6 times air changes per minute are achieved. In this case, the incoming air is preheated, which ensures a good temperature distribution inside the muffle furnace.

• Maximum temperature 1100 ° C;
• Heating the muffle furnace from both sides with ceramic burners;
• Ceramic heating plates with integrated heating element, splash and flue gas proof, easy to replace;
• High quality, high tenacity, vacuum formed fiber module;
• Muffle furnace body made of structured stainless steel sheets;
• Double wall muffle furnace body for low external temperatures and high stability;
• Muffle furnaces are available as an option with either a hinged door (L), which can be used as an additional loading and unloading area, or a lifting door (LT), with the hot side facing away from the operator;
• Low noise operation of the furnace heating system with semiconductor relays;
• More than 6 times air changes per minute;
• Adjustable intake air opening in the muffle furnace door;
• Good temperature distribution inside the muffle furnace due to the preheating of the incoming air.

Additional equipment for muffle furnaces:

• Adjustable temperature limiter with adjustable shutdown temperature for thermal protection class 2 according to EN 60519-2 as overheating protection for ovens and products.

Technical data for Nabertherm hinged door muffle furnaces
Furnace model	T max , ° C	Internal dimensions, mm			Volume, l	External dimensions, mm			power, kWt	Power supply	Weight, kg	Minutes to T max
		Sh	D	IN		Sh	D	IN*
LV 3/11	1100	160	140	100	3	380	370	750	1,2	1-phase	20	120
LV 5/11	1100	200	170	130	5	440	470	850	2.4	1-phase	35	120
LV 9/11	1100	230	240	170	9	480	550	900	3.0	1-phase	45	120
LV 15/11	1100	230	340	170	15	480	650	900	3.6	1-phase	55	120



Technical Data for Nabertherm Lift Door Muffle Furnaces
Furnace model	T max , ° C	Internal dimensions, mm			Volume, l	External dimensions, mm			power, kWt	Power supply	Weight, kg	Minutes to T max
		Sh	D	IN		Sh	D	IN*
LVT 3/11	1100	160	140	100	3	380	370	750	1,2	1-phase	20	120
LVT 5/11	1100	200	170	130	5	440	470	850	2.4	1-phase	35	120
LVT 9/11	1100	230	240	170	9	480	550	900	3.0	1-phase	45	120
LVT 15/11	1100	230	340	170	15	480	650	900	3.6	1-phase	55	120
* incl. exhaust pipe ( Ø 80 mm)

Controller B410

• Easy to install the program
• Black and white LC screen, high contrast
• Display text messages (2 lines)
• Input data with 4 keys (on/off/pause, menu, back, info)
• Stores 5 programs, each program can be adjusted in 4 steps
• Step of temperature adjustment 1 o C
• Accuracy ± 1°C
• Choice of °C/°F
• Display on the menu parameters:
• Working timer
• Count kWh
• Show error history
• Output of control values
• Auto-optimization feature
• Calibration of measuring range with selection of up to 10 points
• NTLog USB port for data retrieval and processing
• In case of power failure, the following modes can be selected:
• Automatically resume running according to the program right before the power failure
• Automatically continue running according to the program right before the power failure if the power failure time is < 2 minutes, if more than that, do not continue running.
• Automatically continue running according to the program right before the power failure if the temperature does not drop lower than 50oC, if it is lower, do not continue running
• Do not continue to run the old program when restoring the power
