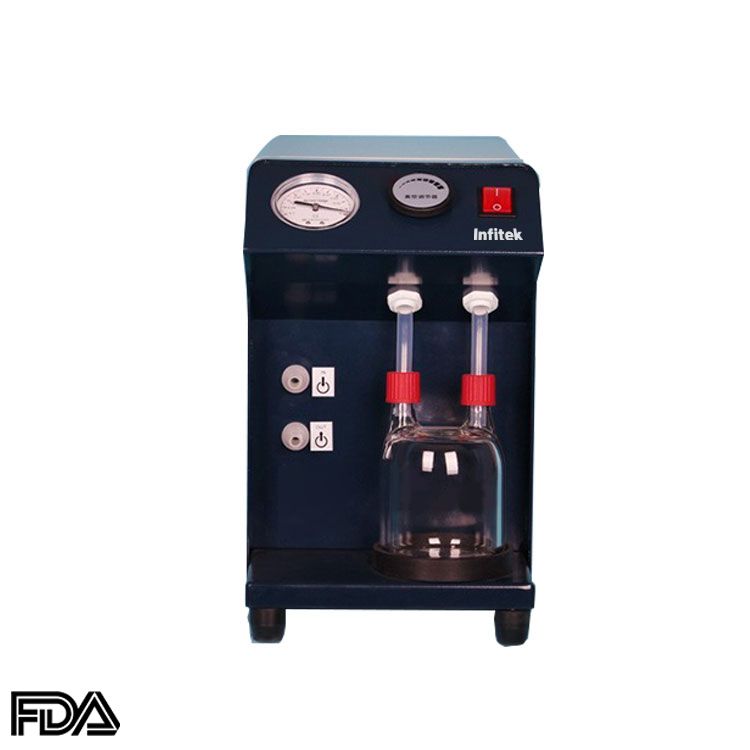

Diaphragm Vacuum Pump, VACP-D401
- Pumping Speed: 45 L/min
- Ultimate Vacuum: 950 mbar
- Extreme Pressure: 50 mbar
- Inlet Diameter: Φ10×Φ7mm
- Provides negative pressure condition
Description
VACP-D401 diaphragm vacuum pump provides negative pressure condition for processes of evaporation, distillation, crystallization, drying, sublimation, reduced pressure filtration etc. It can be used to extract a variety of highly toxic, flammable and explosive, strong acid, and alkali sample.
- A substitute for water circulating vacuum pump and rotary vane vacuum pump.
- No need of any working medium. No friction between working parts.
- Vacuum level can be adjusted according to experiment requirements.
- All parts that contacting gases are made of PTFE + FV rubber with chemical resistance.
- Valve plate adopts imported materials.
- Motor is supplied by famous manufacturer.
- With reasonable design, transmission runs smoothly.
- With small volume and light weight, easy to move. Saving space.
Specifications
| VACP-D401 | |||
| Ultimate Vacuum (MPa) | 0.095 | Inlet Diameter (mm) | Φ10×Φ7 |
| Extreme pressure (mbar) | 50 | Power Supply | 220-240V~, 50Hz |
| Pumping Speed (L/min) | 45 | Dimensions (mm) | 195W×440D×310H |
| Motor Power (W) | 300 | Net Weight (kg) | 23 |
